Weigh Safe TrueTow Middleweight WDH - 8" Drop, 2.5" Shank - 8,500 GTW w/Hitch Pin

The all new Weigh Safe True Tow Middleweight Weight Distribution Hitch is a part of the True Tow family, measuring vehicular tongue weight and providing exact measurement and force needed to accurately redistribute weight across your towing platform. It also boasts the simplest and quickest installation process in the industry.

Built-In Scale
A built-in scale to measure both tongue weight to ensure 10-15% of GTW and distributed tongue weight to truly give you a distributed towing system.

Live Adjustment System
A live adjustment system built into the head assembly with an internal pivot point for quicker and easier installation. With the ability for anytime adjustment, this feature will save you a significant amount of time.

Easy Height Adjustment
Easy height adjustment with 1.25" hole increments for more accurate height adjustment which means no more torquing bolts.

DTW Tool
DTW (Distributed Tongue Weight) tool application for smartphones (android and IOS) is available to set up the highly accurate distributed system. This tool outputs a DTW that the Weigh Safe gauge on the hitch will read when distributed correctly.

True Distribution
Truly distributes the tongue weight of the trailer between the back axle of the tow vehicle and the axle(s) of the trailer and returns the lost weight off the front axle. This provides a safer and smoother ride.

Anti-Sway Hitch
Provides anti-sway friction areas that help reduce sway caused by wind or passing vehicles. These areas reside in the sway bar connection points in the head assembly and the trailer bracket connection points. The hitch head assembly, spring arms, and trailer brackets are all vital components to aid in reducing trailer sway.

Specifications
Model: TTMW8-2.5-KA
Drop: 8"
Built-In Scale: Yes
Shaft: 2.5"
Tow Ball: 2-5/16" tow ball included
Max GTW: 8,500 lbs.
Max Tongue Weight: 850 lbs.
V5 and V684 Certified
Drop Hitch Adjustment: 1.25" increments
Weight: 116 lbs.
Ball Material: Stainless Steel
Drawbar Length: 11"
Hitch Pin Hole: 5/8" dia.
Max Trailer Frame Height: 6"

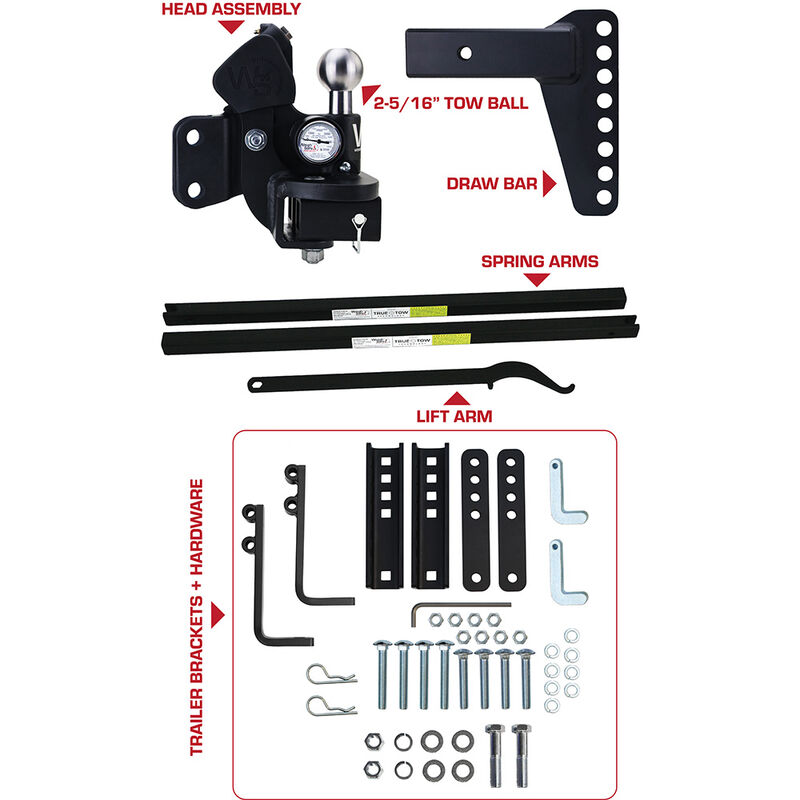

What's Included
Head Assembly
2-5/16" Tow Ball
Draw Bar
Spring Arms
Lift Arms
Trailer Brackets and Hardware
Keyed-Alike Hitch Locking Pin
