Visionworks In-Dash Integration Wireless Camera System for Ford and Trailers, Ford Pickups without 12-Pin Plug

Name: Visionworks In-Dash Integration Wireless Camera System for Ford and Trailers, Ford Pickups without 12-Pin Plug
SKU: 154787
Price: 489.99 USD
Availability: InStock

Item #: 154787

$489.99

FREE Shipping over $2500

FREE In-Store Pickup

Not Available

Ships from Vendor

Return Policy

We believe in offering the very best value, quality, and selection. Plus, we want you to enjoy your purchase! In the event you wish to send a product back to us, you may return most unused items for a refund or exchange, minus shipping, within 90 days from the date of purchase unless noted below under exceptions and exclusions. Refunds are issued to the original form of payment, unless returned in store where some exclusions may apply.

Features

The plug-and-go Visionworks In-Dash Integration Camera System is a wireless option for use with Ford Super Duty pickups without a 12-pin plug. Keep an eye on the traffic behind your RV and back up the trailer by yourself. There's no external monitor needed.

The VisionWorks In-Dash Wireless Rear Observation Camera Integration Kit allows you to connect a camera to your factory-installed in-dash screen for viewing convenience. If your Ford Super Duty truck (2017 to current) has a Sync 3 with an 8" screen, Sync 4 with a 12" screen, or Uconnect with a 8.4" or 12" screen, but doesn't have a 12-pin plug, the truck may be a candidate for this system.

This wireless package has everything you need to install the VisionWorks Wireless HD Camera on a "camera-prepped" RV. It also comes with a universal bracket that will work on any trailer that does not have pre-wiring for a rear observation camera. To ensure a good connection from the camera to your in-dash screen, a Booster Antenna is included to shorten the line of sight on longer RVs. This is the easiest and most affordable in-dash wireless camera system available.

FORD SUPER-DUTY REQUIREMENTS
• 2017-2025 Model Years
• Must be equipped with Ultimate Trailer Tow System (Option 874)
• Must have Sync 3 with 8" screen or Sync 4 with 12" screen
• Compatible on XL, XLT, and Lariat trim levels with Ultimate Trailer Tow System option
• Ultimate Trailer Tow System comes standard on King Ranch, Platinum, and Limited Models
• Does not have a 12-pin plug (for example: a chassis that you're installing a flatbed on)

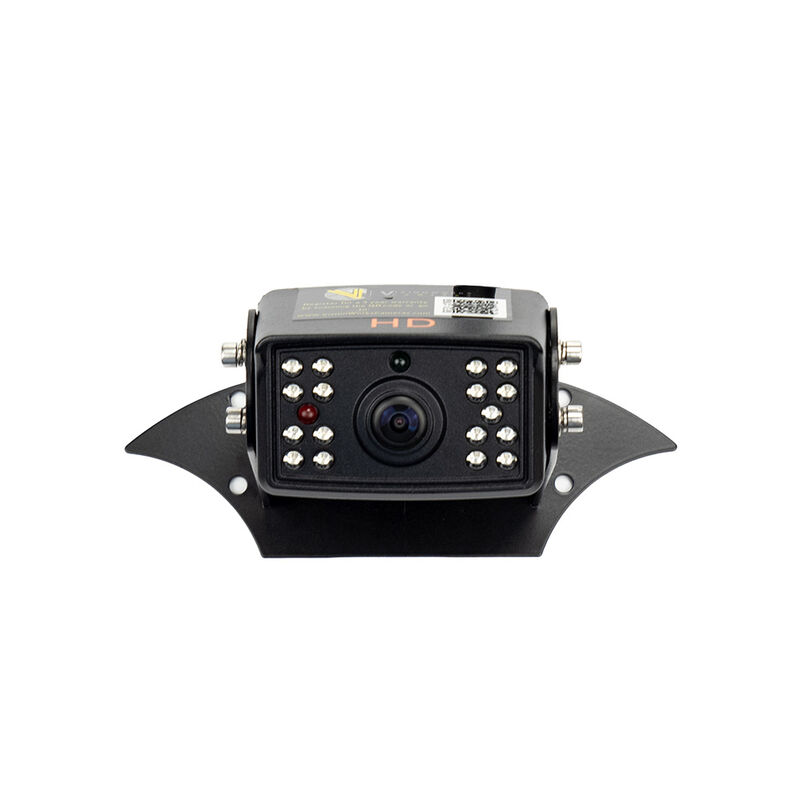

CAMERA SPECIFICATIONS
Resolution: 1080p HD Resolution
Wireless Range: 1,000 ft. with a clear line of sight
Lens: 2.1 mm
Viewing angle: 120°
Durability Rating: IP69k
Frame Rate: 60 FPS
Night Vision: Yes, 2 XL IR LEDs
Night Vision Visibility: 35'

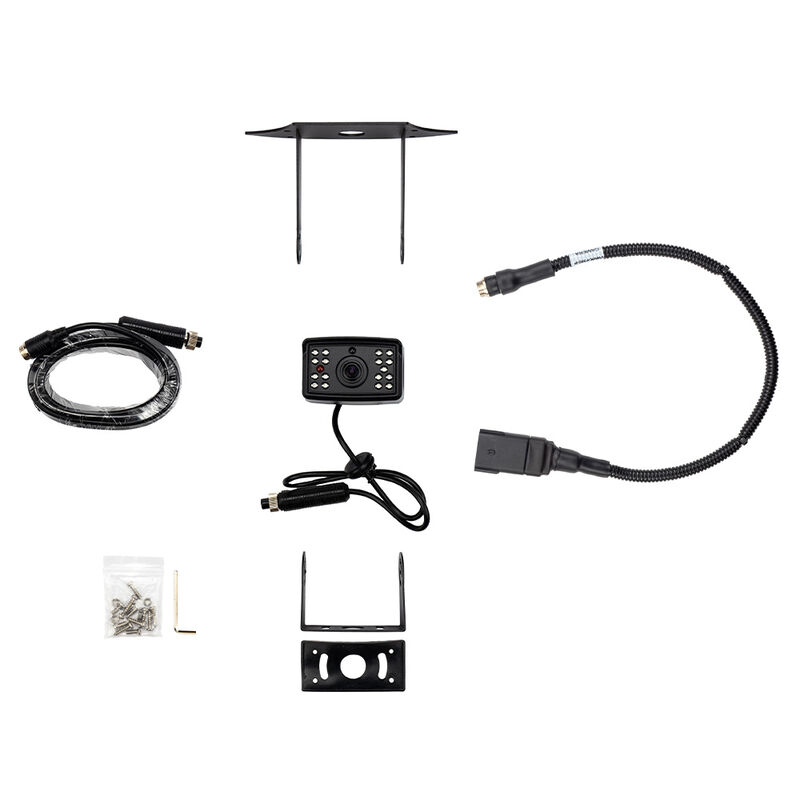

IN-DASH WIRELESS KIT FOR TRAILERS INCLUDES
Wireless Gen2 HD Camera with Nightvision
Weatherproof Receiver
12V Hardwire Kit
Power/Ground Adaptor and Mounting Plate for RV's Prewired for Furrion Camera
Universal Mounting Plate
15' Extension Cable
Booster Antenna
Ford-Compatible Harness

Wireless option for Ford Super Duty pickups without a 12-pin plug
Lets you connect a camera to your factory-installed in-dash screen
Everything you need to install on a "camera-prepped" RV
Universal bracket works on any trailer that doesn't have pre-wiring for camera
Booster Antenna is included to ensure a good connection

Specs

Unit Weight

3.52 lb

MFG Part No.

VWIKTFORD-WL
