Visionworks In-Dash Integration Camera System Wired Kit for Trailers, Pickups with 12-Pin Plug
$389.99
Wholesale Customers: Sign In for exclusive pricing
FREE Shipping over $2500
FREE In-Store Pickup
Not Available
- Ships from vendor
- Delivery to Change Address
- Delivery Fee Details
This item is excluded from all discounts and promotions.
Minimum order quantity of
1
Maximum order quantity of
100
Must purchase in increments of
1
Return Policy
We believe in offering the very best value, quality, and selection. Plus, we want you to enjoy your purchase! In the event you wish to send a product back to us, you may return most unused items for a refund or exchange, minus shipping, within 90 days from the date of purchase unless noted below under exceptions and exclusions. Refunds are issued to the original form of payment, unless returned in store where some exclusions may apply.
Features
The Visionworks In-Dash Integration Camera System is a wired option for keeping an eye on the traffic behind your RV. Back up the trailer by yourself. There's no external monitor needed.
The VisionWorks In-Dash Wired Rear Observation Camera Integration Kit allows you to connect a camera to your factory-installed in-dash screen for viewing convenience. If your Ford Super Duty truck (2017 to current) or Dodge Ram (2020 to current) has a 12-pin outlet above the 7-way plug and has a Sync 3 with an 8" screen, Sync 4 with a 12" screen, or Uconnect with an 8.4" or 12" screen, the truck may be a candidate for this system.
This wired package has everything you need to install the VisionWorks Wired HD Camera on a "camera-prepped" RV. It also comes with a universal bracket that will work on any trailer that does not have pre-wiring for a rear observation camera. To install, run the included cable from your hitch to the camera and plug the camera into the receptacle when the trailer is connected. This is the easiest and most affordable in-dash wired camera available.
FORD SUPER-DUTY REQUIREMENTS
• 2017-2025 Model Years
• Must be equipped with Ultimate Trailer Tow System (Option 874)
• Must have Sync 3 with 8" screen or Sync 4 with 12" screen
• Compatible on XL, XLT, and Lariat trim levels with Ultimate Trailer Tow System option
• Ultimate Trailer Tow System comes standard on King Ranch, Platinum, and Limited Models
• If there is no receptacle, a Ford Compatible Harness is available
RAM / MOPAR HD REQUIREMENTS
• 2020-2025 Model Years
• Must be equipped with Aux Camera Prep Package (Option Code XFQ)
• Must have UConnect System with 8.4" or 12" Screen
• Compatible on Laramie, Limited, Limited Longhorn, Lone Star, Rebel, TRX, Tradesman, and Big Horn
• A RAM compatible harness is available for certain RAM chassis
• Dealer programming may be required if not equipped from the factory
CAMERA SPECIFICATIONS
Resolution: 1080p HD Resolution
Wireless Range: 1,000 ft. with a clear line of sight
Lens: 2.1 mm
Viewing angle: 120°
Durability Rating: IP69k
Frame Rate: 60 FPS
Night Vision: Yes, 2 XL IR LEDs
Night Vision Visibility: 35'

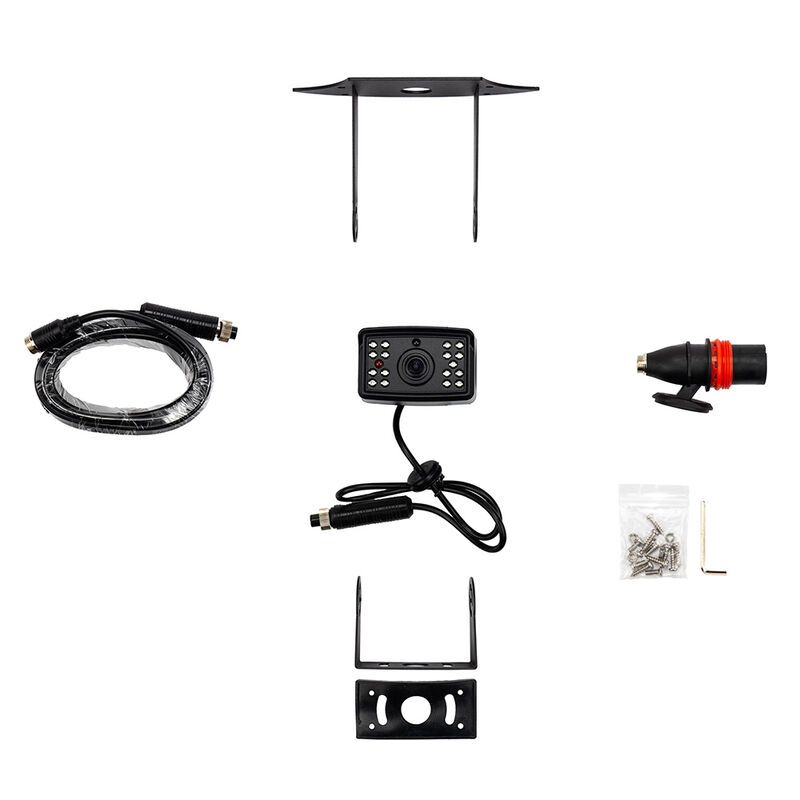

IN-DASH WIRELESS KIT FOR TRAILERS INCLUDES

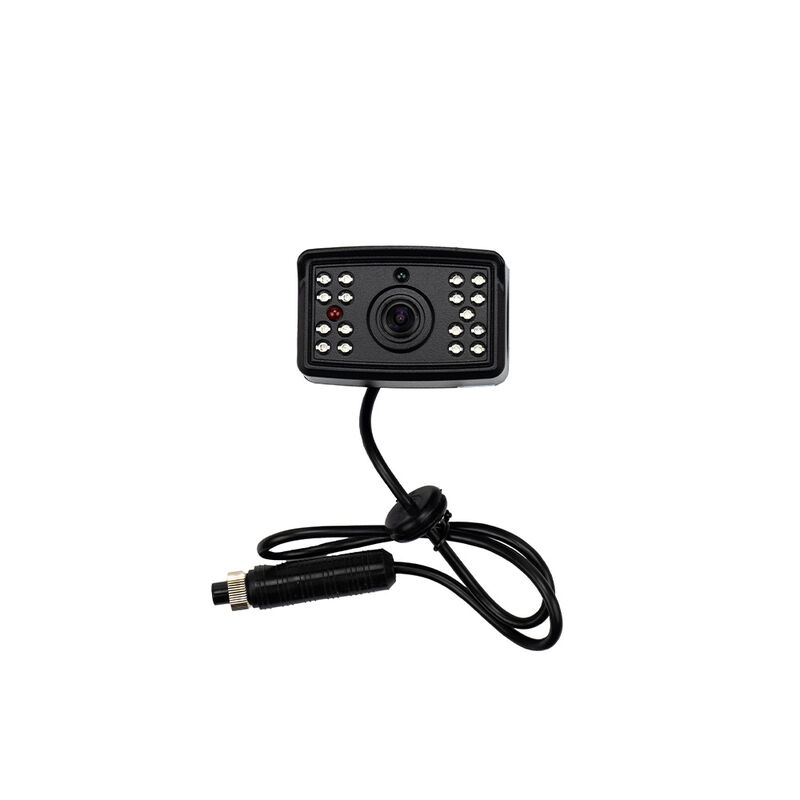

Heavy-Duty Weatherproof Wired Camera
RV Pre-Wired Bracket (Furrion Compatible)
30' Extension Cable
Universal Mounting Plate

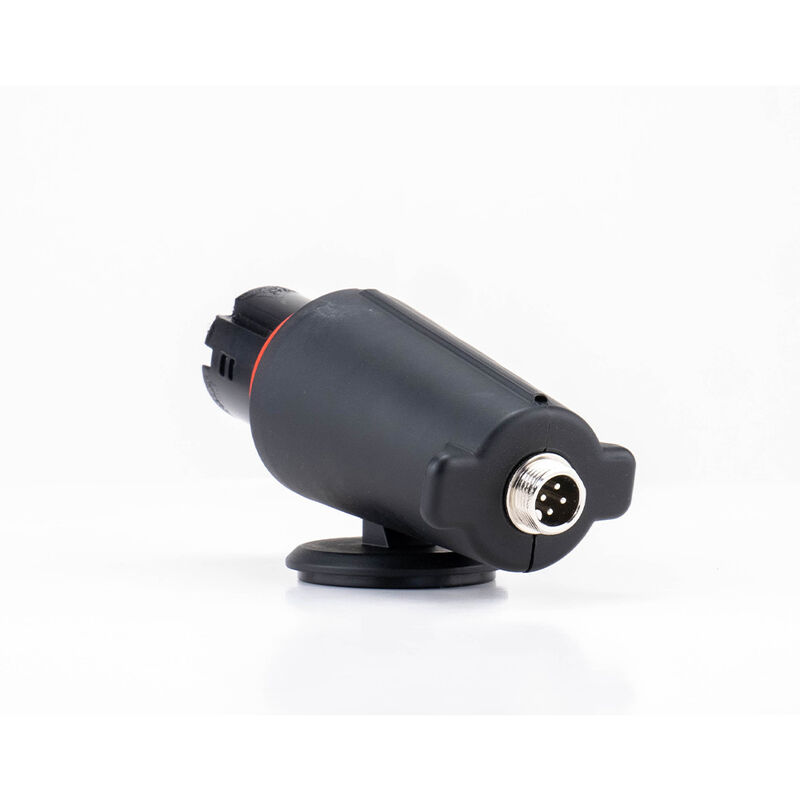

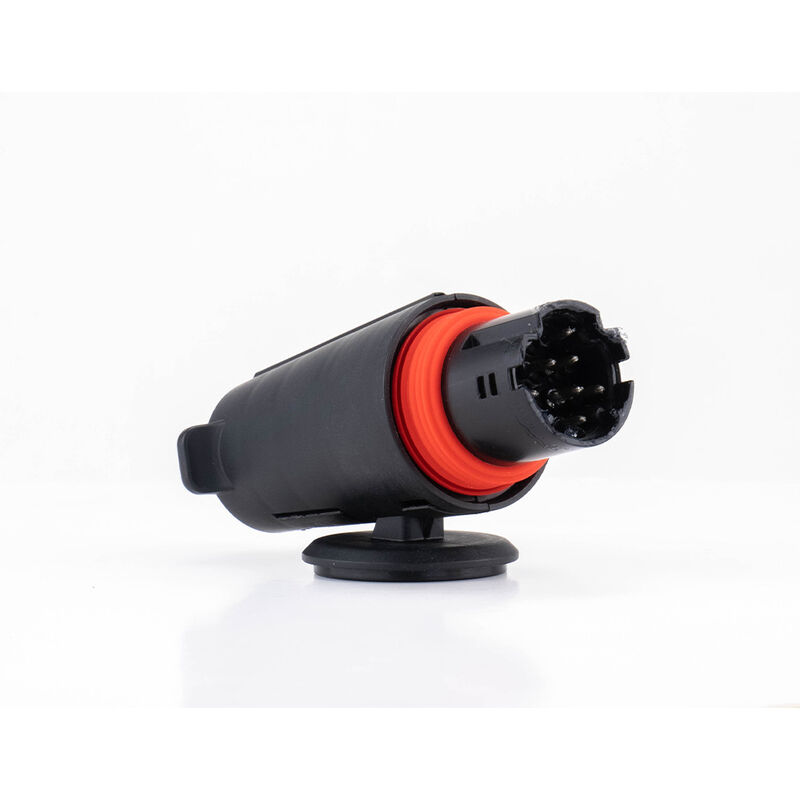

Ford/Ram Factory Integration 12-Pin Adaptor
The VisionWorks In-Dash Wired Rear Observation Camera Integration Kit allows you to connect a camera to your factory-installed in-dash screen for viewing convenience. If your Ford Super Duty truck (2017 to current) or Dodge Ram (2020 to current) has a 12-pin outlet above the 7-way plug and has a Sync 3 with an 8" screen, Sync 4 with a 12" screen, or Uconnect with an 8.4" or 12" screen, the truck may be a candidate for this system.
This wired package has everything you need to install the VisionWorks Wired HD Camera on a "camera-prepped" RV. It also comes with a universal bracket that will work on any trailer that does not have pre-wiring for a rear observation camera. To install, run the included cable from your hitch to the camera and plug the camera into the receptacle when the trailer is connected. This is the easiest and most affordable in-dash wired camera available.
FORD SUPER-DUTY REQUIREMENTS
• 2017-2025 Model Years
• Must be equipped with Ultimate Trailer Tow System (Option 874)
• Must have Sync 3 with 8" screen or Sync 4 with 12" screen
• Compatible on XL, XLT, and Lariat trim levels with Ultimate Trailer Tow System option
• Ultimate Trailer Tow System comes standard on King Ranch, Platinum, and Limited Models
• If there is no receptacle, a Ford Compatible Harness is available
RAM / MOPAR HD REQUIREMENTS
• 2020-2025 Model Years
• Must be equipped with Aux Camera Prep Package (Option Code XFQ)
• Must have UConnect System with 8.4" or 12" Screen
• Compatible on Laramie, Limited, Limited Longhorn, Lone Star, Rebel, TRX, Tradesman, and Big Horn
• A RAM compatible harness is available for certain RAM chassis
• Dealer programming may be required if not equipped from the factory
CAMERA SPECIFICATIONS
Resolution: 1080p HD Resolution
Wireless Range: 1,000 ft. with a clear line of sight
Lens: 2.1 mm
Viewing angle: 120°
Durability Rating: IP69k
Frame Rate: 60 FPS
Night Vision: Yes, 2 XL IR LEDs
Night Vision Visibility: 35'
IN-DASH WIRELESS KIT FOR TRAILERS INCLUDES
Heavy-Duty Weatherproof Wired Camera
RV Pre-Wired Bracket (Furrion Compatible)
30' Extension Cable
Universal Mounting Plate
Ford/Ram Factory Integration 12-Pin Adaptor
- Wired option for keeping an eye on the traffic behind your RV
- Allows you to connect a camera to your factory-installed in-dash screen
- For Ford Super Duty or Dodge Ram with 12-pin outlet above the 7-way plug
- Universal bracket will work on any trailer without pre-wiring for a rear camera
- Includes 30' cable that runs from hitch to camera
Specs
Unit Weight
2.82 lb
MFG Part No.
VWFDIKT
