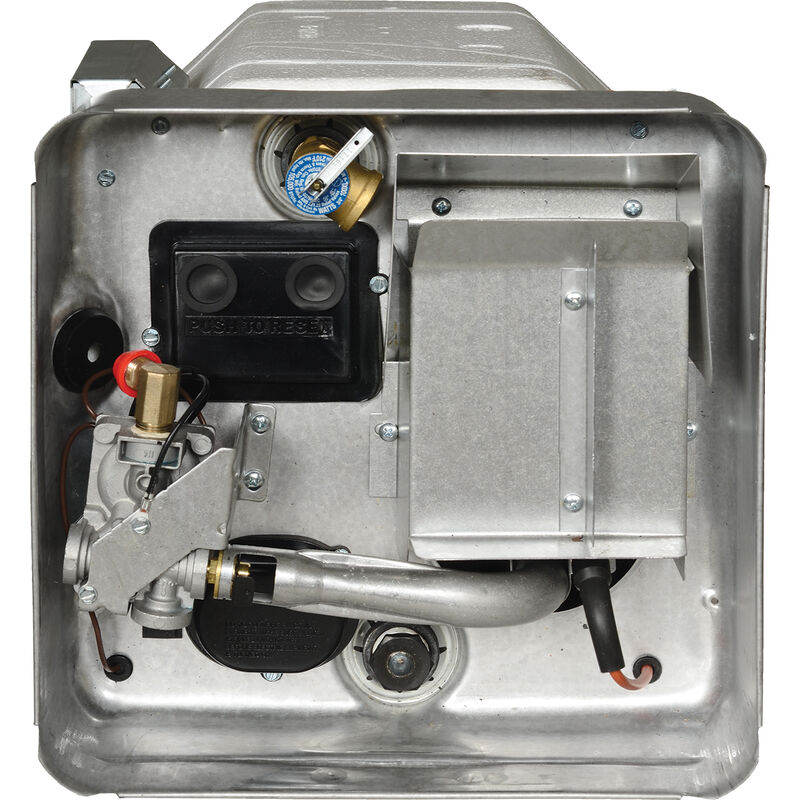

Suburban Direct Spark Ignition and Electric Element with 12-Volt Relay Switch (DEL) Gas Water Heater, 12 Gallons image number 1

Suburban Direct Spark Ignition and Electric Element with 12-Volt Relay Switch (DEL) Gas Water Heater, 12 Gallons

3.4 out of 5 Customer Rating
Item #: 101562
$722.03
FREE Shipping over $2500
Estimated delivery in 5-7 days Estimated delivery in 5-7 days
FREE In-Store Pickup
Select store
Free Pickup at Select Stores . Change Store

Curbside Pickup available
  • In Stock
Additional shipping charges may apply.

In-Store Only

This item is excluded from all discounts and promotions.

Minimum order quantity of 1
Maximum order quantity of 100
Must purchase in increments of 1
Return Policy

We believe in offering the very best value, quality, and selection. Plus, we want you to enjoy your purchase! In the event you wish to send a product back to us, you may return most unused items for a refund or exchange, minus shipping, within 90 days from the date of purchase unless noted below under exceptions and exclusions. Refunds are issued to the original form of payment, unless returned in store where some exclusions may apply.

See Full Return Policy
The link to Suburban Direct Spark Ignition and Electric Element with 12-Volt Relay Switch (DEL) Gas Water Heater, 12 Gallons has been copied
Features
The Suburban SW12DEL Gas Water Heater provides reliable service and easy maintenance. This high-recovery 12,000 BTU/hour model features a porcelain steel tank, foam insulation, large diameter drain, and replaceable anode rod to absorb corrosive electrolysis action. The one-piece, die-formed housing protects controls and connections yet offers easy access. Fits cut-out openings of prior models. Access door and frame are easily installed on any type RV side.

The SW12DEL Model also lets you take advantage of campground or generator power to heat your water with the 1440-watt Incoloy electric element. The Incoloy electric element provides a recovery rate of 6.1 gallons per hour. For a faster recovery rate of 16.2 gallons per hour, use both gas and electric simultaneously. The 12-volt relay switch lets you conveniently control the water heater gas ignition and power from inside your RV.

Note: Gas appliances should be installed and/or serviced by a qualified service technician.

Model: SW12DEL
Gallon Capacity: 12
Input: 12,000 BTU/h / 1440 Watts
Recovery (Gas): 10.1 gal./hr.
Recovery (Electric): 6.1 gal./hr.
Height: 16-7/32"
Width: 16-7/32"
Depth: 22-1/4"
Unit Net Weight: 48.0 lbs. (empty) / 148.08 lbs. (full)
  • 1440-watt Incoloy electric element for use with campground power
  • High recovery 12,000 BTU/hour
  • Porcelain steel tank with foam insulation
  • Access door and frame are easily installed
  • Relay switch for control from inside your RV
Specs
Unit Weight
48.80 lb
Brand
Suburban
MFG Part No.
5248A
