Simrad OP50 Wired Remote Control - Portrait Mount image number 1
Online Exclusive

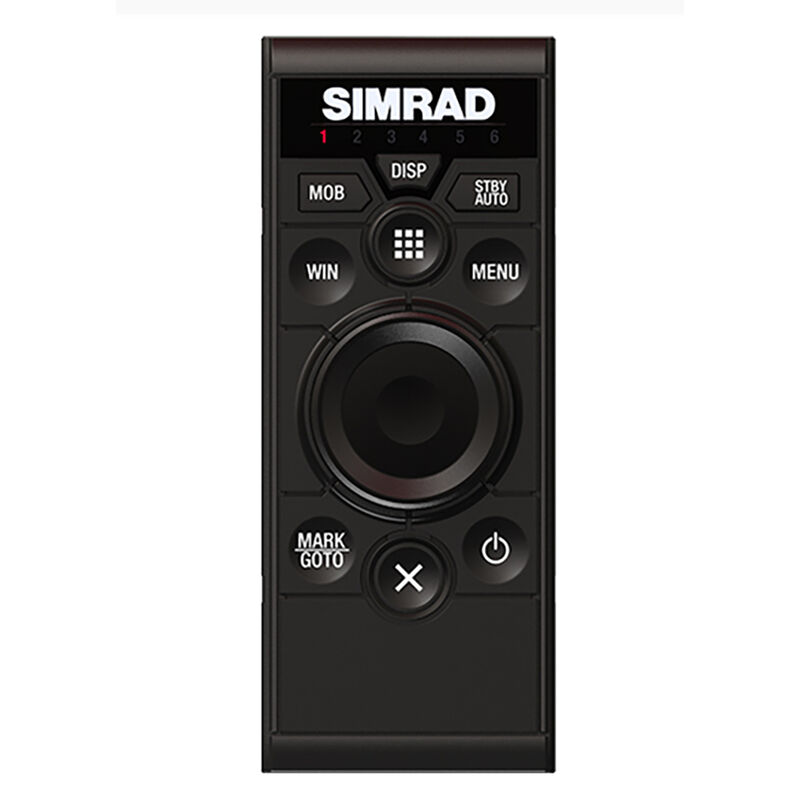

Simrad OP50 Wired Remote Control - Portrait Mount

5 out of 5 Customer Rating
Item #: 351521
$472
Shipping
FREE In-Store Pickup
Not Available
  • Ships from vendor
Additional shipping charges may apply.

Ships in 1-2 business days

In-Store Only

This item is excluded from all discounts and promotions.

Minimum order quantity of 1
Maximum order quantity of 100
Must purchase in increments of 1
Return Policy

We believe in offering the very best value, quality, and selection. Plus, we want you to enjoy your purchase! In the event you wish to send a product back to us, you may return most unused items for a refund or exchange, minus shipping, within 90 days from the date of purchase unless noted below under exceptions and exclusions. Refunds are issued to the original form of payment, unless returned in store where some exclusions may apply.

See Full Return Policy
The link to Simrad OP50 Wired Remote Control - Portrait Mount has been copied
Features
Perfectly designed for mounting in a helm chair arm, between monitors, or in other locations suiting a portrait orientation, the Simrad OP50 Remote Control provides intuitive keypad and rotary-dial command of up to six NSS evo2 or NSO evo2 multifunction displays.

Features:
• Control up to six NSS evo2 or NSO evo2 multifunction displays
• High-quality aluminium control dial with built-in cursor functions
• Portrait orientation (landscape version also available)
• Narrow design perfect for helm chair arm mounting
• Dash mount with low 8mm profile
• Zero-profile flush mount with optional bracket
• Integrated high-decibel speaker for critical alarms
• Quickly switch displays with dedicated button and LED indicators
• Single NMEA 2000 connection

Manage Multiple Displays
Networked with a single NMEA 2000 connection for both power and control, one OP50 Remote Controller can operate up to six networked multifunction displays. Integrated LED indicator lights clearly show the selected display number, while a dedicated button cycles quickly through the available displays.

Controls Optimized for NSS evo2 and NSO evo2
The OP50 Remote Controller features a keypad specifically designed to operate the latest NSS evo2 and NSO evo2 multifunction displays efficiently and reliably in all conditions. The controller's high-quality aluminium dial features a knurled edge for precise rotary control, and built-in cursor functions for easy on-screen navigation.

Easy Mounting in Vertical or Portrait Orientation
The portrait OP50 is perfectly suited to mounting in the arm of a helm chair, with its narrow design and cable positioned specially to fit such installations. This orientation is also ideal for use in narrow consoles and beside Simrad MO-series touchscreen or pilothouse monitors. Dash mounting provides a slim 8mm profile, while an optional bracket allows total flush-mount installation.

Specifications:
• NMEA 2000 Certified: Yes
• Operating Temperature: -15°C to +55°C/5°F to 131°F
• Waterproof Standard/Rating: IPX6 (from front when dash mounted with gasket) IPX2 (from back)
• Product Width: 60mm/2.36"
• Product Depth: 44.5mm/1.75"
• Product Height: 150mm/5.9"
• Product Weight: 0.3kg/0.66lb
• Power Consumption: <[email protected]
• NMEA 2000 Load Equivalency Number: 2 network loads (100mA)
  • Control up to six NSS evo2 or NSO evo2 displays
  • High-quality aluminum control dial
  • Portrait orientation
  • Dash mount with low 8mm profile
Specs
Unit Weight
1.20 lb
Brand
Simrad
MFG Part No.
61077
