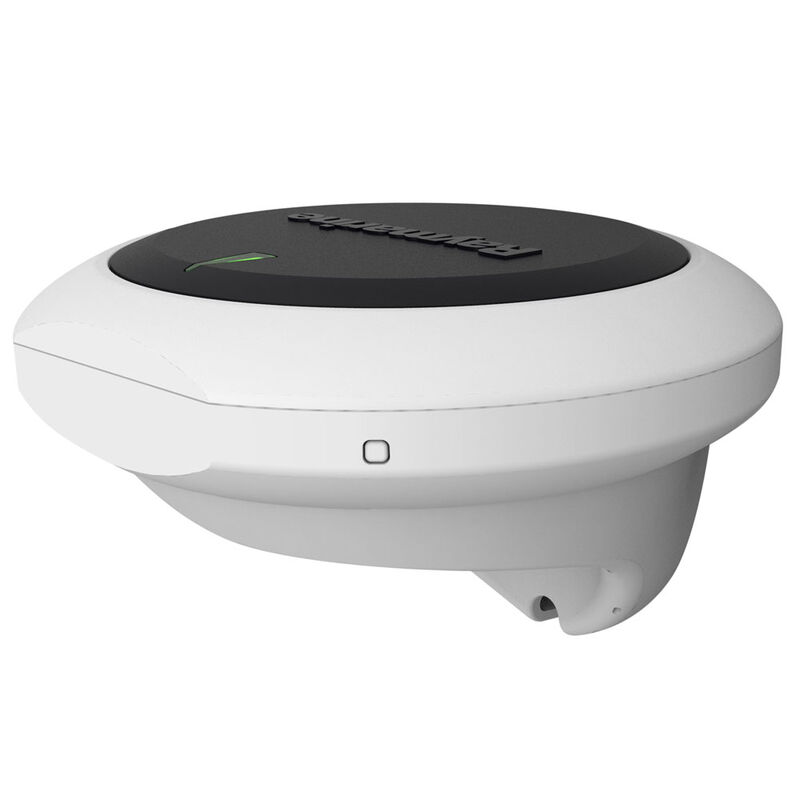

Raymarine EV-1 Sensor Core image number 1
Online Exclusive

Raymarine EV-1 Sensor Core

3.4 out of 5 Customer Rating
Item #: 330810
$879.99
Shipping
FREE In-Store Pickup
Select store
Free Pickup at Select Stores .

Curbside Pickup available
  • Ships from vendor
Additional shipping charges may apply.

Ships in 1-2 business days

In-Store Only

This item is excluded from all discounts and promotions.

Minimum order quantity of 1
Maximum order quantity of 100
Must purchase in increments of 1
Return Policy

We believe in offering the very best value, quality, and selection. Plus, we want you to enjoy your purchase! In the event you wish to send a product back to us, you may return most unused items for a refund or exchange, minus shipping, within 90 days from the date of purchase unless noted below under exceptions and exclusions. Refunds are issued to the original form of payment, unless returned in store where some exclusions may apply.

See Full Return Policy
The link to Raymarine EV-1 Sensor Core has been copied
Features
At the center of every Evolution autopilot system is the intelligent EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-to-install housing. The EV-1 is designed for Evolution mechanical and hydraulic autopilot systems. SeaTalkng networking enables a single cable connection for power and data to the Evolution ACU (actuator control unit) and extended SeaTalkng and NMEA2000 networks. Rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing and submersion standards, allowing the EV sensor core to be mounted above or below decks.

Features
• Precision monitoring of heading, pitch, roll, and yaw allowing the autopilot to evolve instantly as sea conditions and vessel dynamics change
• Simple SeaTalkng connectivity to the control head and ACU
• Solid state sensor technology delivers dynamic accuracy to within 2° in all conditions
• Auto-compensation for on board magnetic fields and reliable heading accuracy in the northern and southern extremes
• Fast and reliable heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays
  • 9-axis sensor monitors motion in all dimensions
  • Single housing is easy to install
  • Simple SeaTalkng connectivity
  • Fast and reliable heading data
Specs
Unit Weight
1.00 lb
Brand
Raymarine
MFG Part No.
49104
