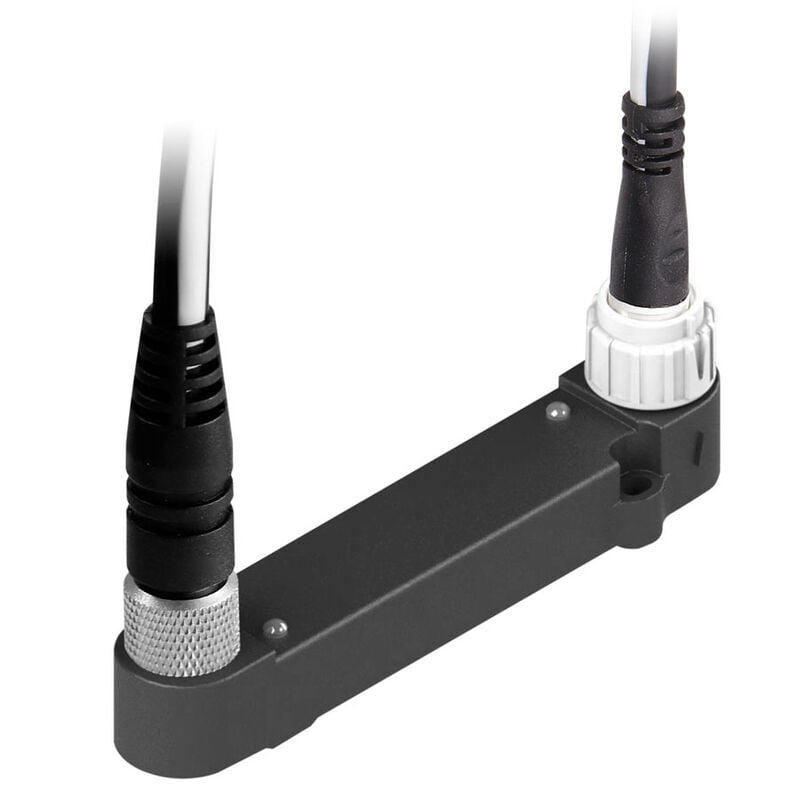

Raymarine ECI-100 Universal Engine And Control Interface image number 1
Online Exclusive

Raymarine ECI-100 Universal Engine And Control Interface

5 out of 5 Customer Rating
Item #: 329396
$339.99
Shipping
FREE In-Store Pickup
Not Available
  • Ships from vendor
Additional shipping charges may apply.

Ships in 1-2 business days

In-Store Only

This item is excluded from all discounts and promotions.

Minimum order quantity of 1
Maximum order quantity of 100
Must purchase in increments of 1
Shipping Restrictions
This item cannot be shipped internationally.
Return Policy

We believe in offering the very best value, quality, and selection. Plus, we want you to enjoy your purchase! In the event you wish to send a product back to us, you may return most unused items for a refund or exchange, minus shipping, within 90 days from the date of purchase unless noted below under exceptions and exclusions. Refunds are issued to the original form of payment, unless returned in store where some exclusions may apply.

See Full Return Policy
The link to Raymarine ECI-100 Universal Engine And Control Interface has been copied
Features
The ECI-100 Universal Engine and Control Interface is an innovative solution for bridging engine instrumentation and drive-by-wire steering with Raymarine autopilot and navigation systems. A simple isolated CAN Bus solution, the ECI-100 offers reliable integration with Raymarine's latest generation of multifunction displays and also delivers a seamless autopilot steering interface to Raymarine's Evolution EV-2 Drive By Wire autopilot system.

Benefits:
• A simple, single point of connection for engine data and drive-by-wire autopilot control.
• Affordable and uncomplicated solution eliminates the need for multiple engine and autopilot gateways.
• Brings Raymarine's Evolution 9-axis sensor and adaptive autopilot control to drive-by-wire propulsion without the need for a proprietary autopilot gateway.
• View engine data displays, and enjoy full autopilot control alongside Raymarine's industry-leading radar, sonar, and navigation technologies using a single touchscreen display.
• From space-saving aSeries to flagship big screen gS Series, engine information displays and autopilot control are available on any display running LightHouse v8 or later.
• Access easy to customize displays to show engine performance data, fuel consumption, alarms, and much more.
• View engine information displays on your smartphone or tablet with Raymarine mobile apps.
• Simple to install ECI-100 makes engine and navigation integration a reality for virtually any size vessel.

ECI-100 Engine Data Parameters
The ECI-100 Universal Engine and Control Interface identifies the following parameters:

• Engine speed
• Engine oil temperature
• Engine temperature
• Engine oil pressure
• Engine coolant pressure
• Engine fuel rate
• Boost pressure
• Battery potential
• Transmission oil pressure
• Transmission oil temperature
• Total engine hours
• Fuel tank level
• Trip fuel used (calculated by ECI-100)
• Alternator potential
• Engine torque
• Engine percent load
• Transmission gear
• VIN (not shown on the display)
• Software number (not shown on the display)

Simple Integration, Powerful Performance
The ultra-compact ECI-100 connects directly to the industry-standard NMEA2000 or SAE J1939 Engine Data Bus used by major marine engine manufacturers including:

• Volvo Penta
• Yamaha Marine (Command Link Plus only)
• Caterpillar
• Yanmar Marine
  • Solution for bridging engine instrumentation
  • Offers reliable integration
  • Eliminates need for multiple gateways
  • Easy to customize displays
  • For use on any size vessel
Specs
Model Number
ECI-100
Network/Interface
NMEA 2000, SAE J1939
Waterproof
Yes
Unit Weight
0.52 lb
Brand
Raymarine
MFG Part No.
49819
