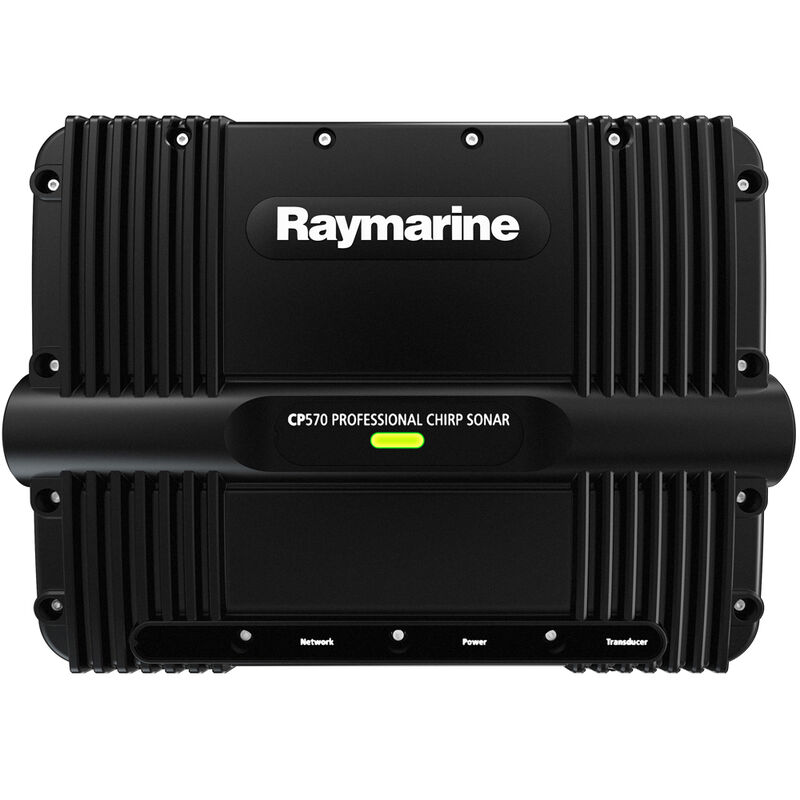

Raymarine CP570 CHIRP Sonar Module

Engineered for serious anglers, the CP570 sonar module bring best target separation and high resolution CHIRP sonar imagery to Raymarine multifunction displays. Using a wide spectrum of frequencies and greater sensitivity the CP470's advanced CHIRP transceiver can see through dense schools of baitfish, identify thermoclines, and simultaneously target desired game fish. Rated for offshore use and rough conditions, the CP570 intelligently filters out unwanted noise while producing high resolution fish targets and reliable bottom tracking.

Serious Offshore Sonar
Superior target definition and enhanced sensitivity using Raymarine's exclusive wide spectrum CHIRP sonar technology. Target fish, identify bait, and track the sea floor down to 10,000' with two adjustable CHIRP sonar channels.

Stunning Detail & Clarity
With 10 times the resolution of ordinary sonars, the CP570 delivers sharper, more defined fish targets, and automatically filters out unwanted noise so you never miss the action below. TruZoom magnification mode reveals extra target detail without any loss of resolution.

Easy To Customize
Choose optional low, medium, and high CHIRP frequency transducers in standard or wide-beam to match your fishing preferences. The CP570 automatically recognizes connected transducers and adjusts sonar parameters for optimized performance. View and control each CHIRP channel independently, and create your own combination of full or split-screen sonar windows on Raymarine's LightHouse II powered multifunction displays.

Sonar Performance
• Sonar Type: Wide Spectrum CHIRP
• Power: Max 4kW output using 2 independent CHIRP channels
• Frequency & Channels: Dual independent CHIRP channels from 25 to 250kHz
• Depth Range: 10,000' (3,000M)

Features:
• TruZoom provides magnified views of fish targets, bottom structure, and bait fish without loss of resolution
• Automatic transducer identification with Airmar Xducer ID
• Airmar Wide Beam transducer compatible
• Waterproofing Standard: IPX6 waterproof (aluminum enclosure)
• Compatibility: a Series | c Series | e Series | gS Series
• Nominal Supply Voltage: 12/24V DC
• Power Consumption: 30.6W (Maximum)
• Connections: Power connection | Network connection (RayNet connector) 10/100 Mb/s | Transducer connection
