Nauticus SMART TABS SX Series, SX10512-90

5 out of 5 Customer Rating
Item #: 320096
$149.99
FREE Shipping over $2500
Estimated delivery in 5-7 days Estimated delivery in 5-7 days
FREE In-Store Pickup
Select store
Free Pickup at Select Stores . Change Store

Curbside Pickup available
  • In Stock
Additional shipping charges may apply.

In-Store Only

This item is excluded from all discounts and promotions.

Minimum order quantity of 1
Maximum order quantity of 100
Must purchase in increments of 1
Return Policy

We believe in offering the very best value, quality, and selection. Plus, we want you to enjoy your purchase! In the event you wish to send a product back to us, you may return most unused items for a refund or exchange, minus shipping, within 90 days from the date of purchase unless noted below under exceptions and exclusions. Refunds are issued to the original form of payment, unless returned in store where some exclusions may apply.

See Full Return Policy
The link to Nauticus SMART TABS SX Series, SX10512-90 has been copied
Features
Automatic Performance, Self-Adjusting Trim And Stabilizer System

Enjoy better operating speeds, improved visibility, and greater stability with the economical Nauticus Smart Tabs SX Series. The one-of-a-kind Smart Tabs system is speed-regulated, requiring no operator adjustment while underway. The system uses a nitrogen gas actuator which stabilizes your boat without the use of hydraulics or electric switches. The amount of "lift" provided by the actuator is determined by the load rating and trim plate adjustment done at the time of installation. The system can be specifically tuned to maximize the performance of any power boat, and tracking ribs have been added to improve handling at higher speeds.

Smart Tabs can be assembled in seconds and installed in minutes - the only tools required are a drill with a 3/16" bit and a Phillips screwdriver. Molded composite construction offers rust-free, corrosion-free protection. With smoother, faster acceleration, 40% less bow rise, and a 35% lower plane speed, Smart Tabs SX are the ultimate trim tab system for skiing and tubing.

Model SX10512-90 Specs
• Tab Size: 10.5" x 12"
• Boat Length: 21'-25'
• Engine: 220-250 hp 2-stroke; 200-250 hp 4-stroke; 8-cyl. I/O
• Actuator Pressure: 90 lbs. lift

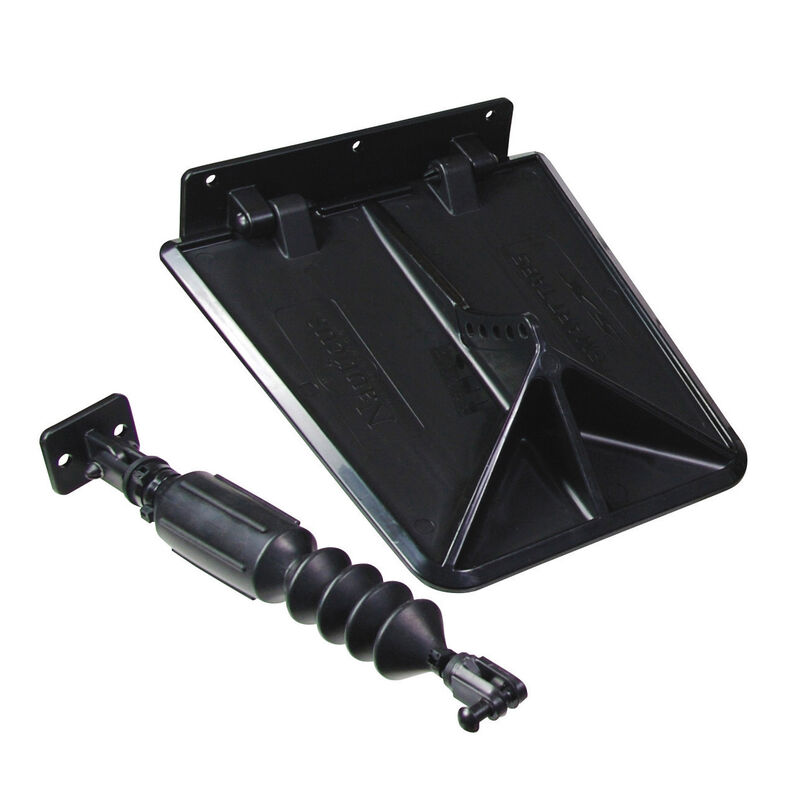

SMART TABS SX Series Kits Include
• 2 Trim Plates
• 2 Actuators
• 2 Transom Brackets with Hinges
• Mounting Screws
  • Self-adjusting trim and stabilizer system
  • Speed-regulated with no operator adjustments
  • Nitrogen gas actuator; no hydraulics
  • Installed quickly and easily
  • Includes two trim plates and actuators
Specs
Boat Length
21' - 25'
Dimensions
10-1/2" x 12"
Unit Weight
4.04 lb
Brand
Nauticus
MFG Part No.
SX10512-90
