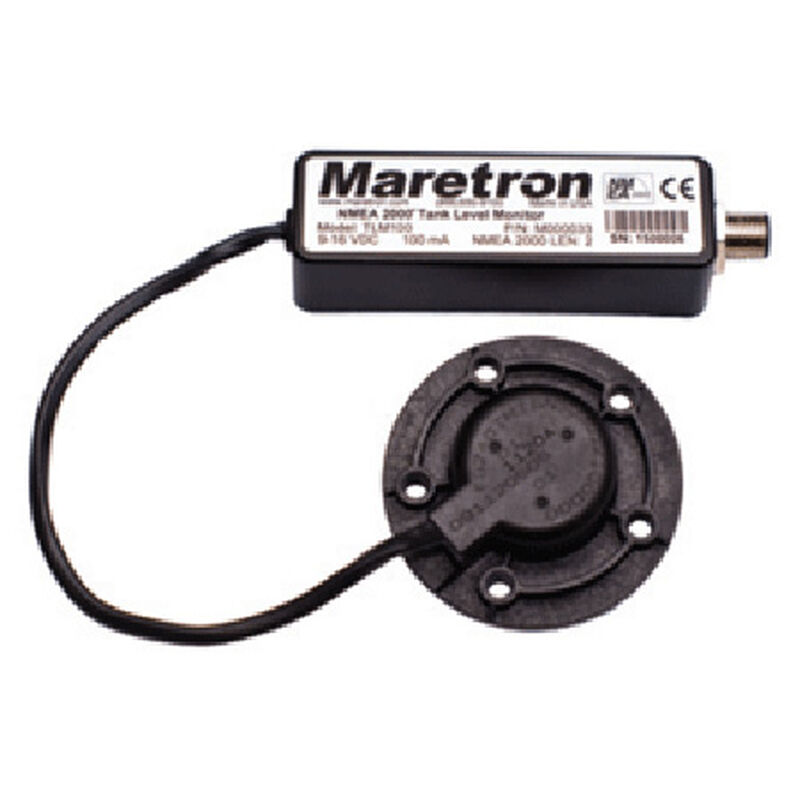

Maretron TLM100 - Tank Level Monitor (40"D max) for NMEA 2000 Network image number 1
Online Exclusive

Maretron TLM100 - Tank Level Monitor (40"D max) for NMEA 2000 Network

5 out of 5 Customer Rating
Item #: 323543
$225
Shipping
FREE In-Store Pickup
Select store
Free Pickup at Select Stores .

Curbside Pickup available
  • Ships from vendor
Additional shipping charges may apply.

Ships in 1-2 business days

In-Store Only

This item is excluded from all discounts and promotions.

Minimum order quantity of 1
Maximum order quantity of 100
Must purchase in increments of 1
Return Policy

We believe in offering the very best value, quality, and selection. Plus, we want you to enjoy your purchase! In the event you wish to send a product back to us, you may return most unused items for a refund or exchange, minus shipping, within 90 days from the date of purchase unless noted below under exceptions and exclusions. Refunds are issued to the original form of payment, unless returned in store where some exclusions may apply.

See Full Return Policy
The link to Maretron TLM100 - Tank Level Monitor (40"D max) for NMEA 2000 Network has been copied
Features
Maretron's TLM100 and TLM150 are used to sense fluid levels of tanks by using ultrasonic technology. Ultrasonic (sound) waves are transmitted via the Monitor mounted at the top of the tank, and the flight times of the sound waves to and from the fluid are measured much like a depth sensor. This means that there are no long, difficult-to-handle probes protruding into the tank, which often foul or corrode. Once the Maretron Tank Level Monitor calculates and transmits the fluid level over the NMEA 2000 network, you can access the information from any NMEA 2000 compatible display. Unlike most tank senders that only work with rectangular tanks, the TLM100 and TLM150 can be calibrated for irregular tank shapes, so you can know the true fluid level in your tanks. The Monitor is mounted directly to the top of tanks with a standard 5-hole pattern or with threaded tank openings and optional adapters.

The TLM100 is capable of sensing fluid levels in tanks up to 40" deep. It can be used for diesel, fresh water, waste water, black water, and oil tanks.

The TLM150 is designed specifically for gasoline tanks and is capable of sensing gasoline levels in tanks up to 24" deep.

Features:
• NMEA 2000 Interface
• Ultrasonic technology (sound waves)
• No probes
• Calibrate for irregular tank shapes
• Monitor mounts with SAE 5-hole pattern unless threaded adapter is purchased
• Resists corrosion
• Waterproof to IP67 standards

Accessories (sold separately):
• Threaded Mounting Adapters
• (#84459) Maretron Displacement Hull Tank Adapter for TLM100/150, 1.5" NPT
• (#84460) Maretron Displacement Hull Tank Adapter for TLM100/150, 1.25" BSP
• Hull Focus Tube
• (#84461) Maretron Non-Displacement Hull Focus Tube for TLM100/150, SAE 5-bolt
• (#84462) Maretron Non-Displacement Hull Focus Tube for TLM100/150, 1.5" NPT
• (#84463) Maretron Non-Displacement Hull Focus Tube for TLM100/150, 1.25" BSP
• Black Water Airlock (for TLM100 only)
• (#84464) Maretron Black Water Airlock for TLM100, SAE 5-bolt
• (#84465) Maretron Black Water Airlock for TLM100, 1.5" NPT
• (#84466) Maretron Black Water Airlock for TLM100, 1.25" BSP
  • Meets NMEA 2000 specifications
  • Ultrasonic technology requires no depth probe
  • Resists corrosion; waterproof to IP67 rating
  • Can be calibrated for irregular tank shapes
  • TLM150 recommended for gasoline tanks
Specs
Waterproof
Yes
Unit Weight
0.00 lb
Brand
Maretron
MFG Part No.
35195
