Features
An automatic leveling system quickly brings your coach into level without using leveling blocks or ramps.

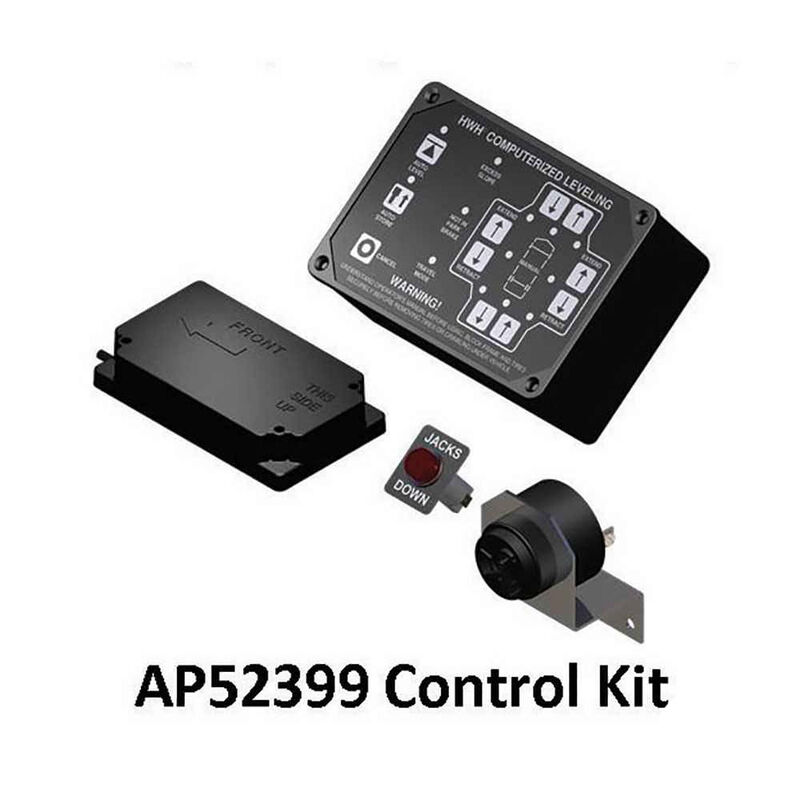

All systems use combinations of straight-down and/or kick-down jacks engineered for your RV’s specific chassis configuration. Operation is easy, using joystick controls or automatic, single-step computerized touch panel controls.

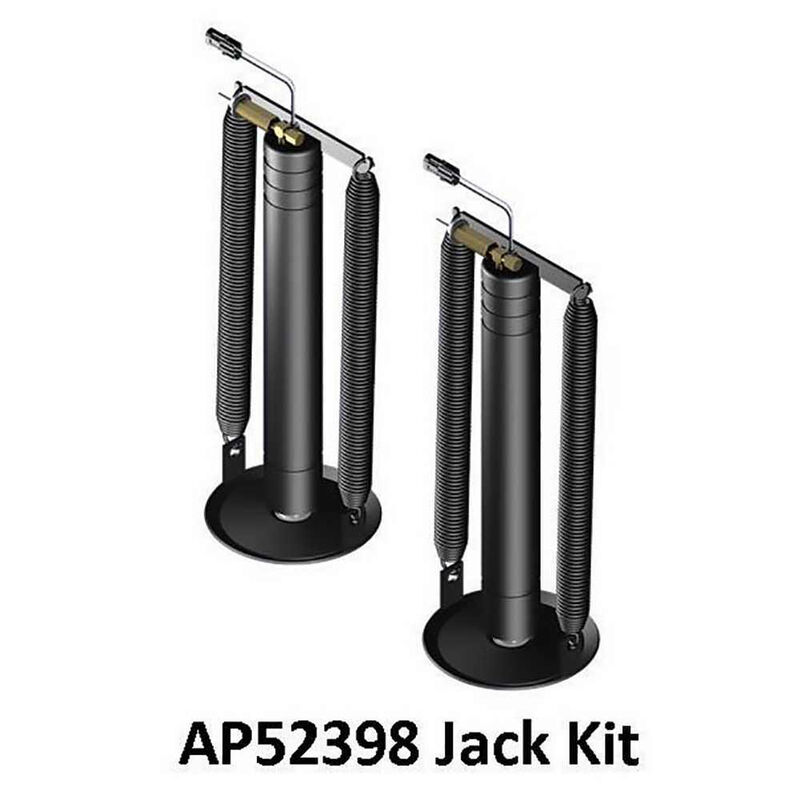

HWH Hydraulic Leveling Jacks are available in a wide range of lifting capacities to fit virtually any RV. HWH jacks feature state-of-the-art, corrosion protected hydraulic cylinders designed for long life.
HWH Hydraulic Leveling Systems are available for:
What is Bi-Axis Leveling?
HWH leveling systems level your RV two ways: end-to-end and side-to-side. This is done by activating two jacks at a time to raise one side or one end instead of individual corners. This prevents twisting or stress on the frame that can cause damage or cause interior components to not work correctly, like cabinets or doors that stick after jacks are deployed.

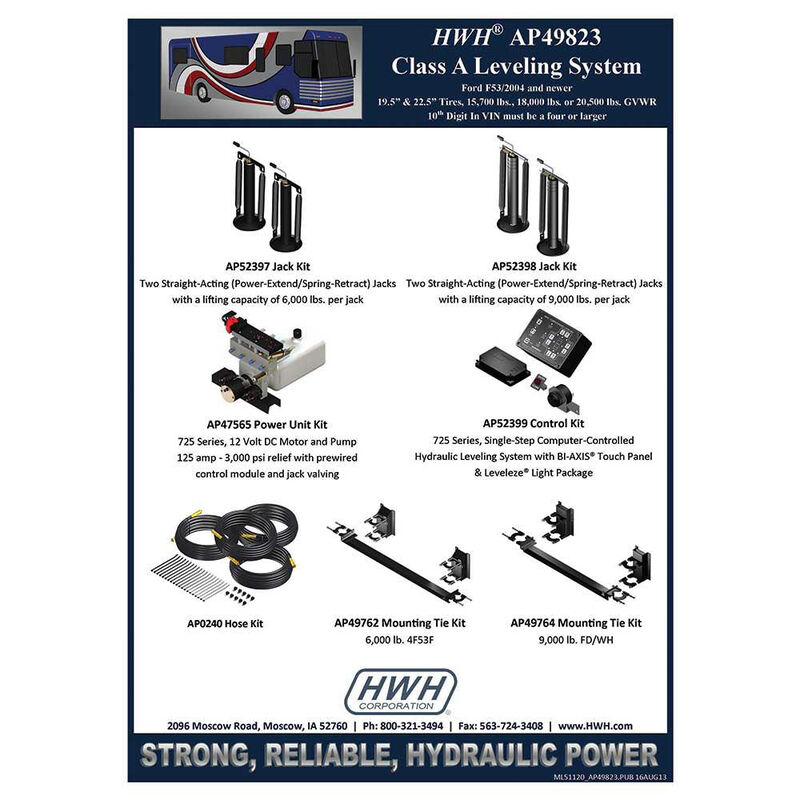

Class A Motorhome
These systems use either straight-down jacks that larger footpads to resist sink-in on soft surfaces, or kick-down jacks can be mounted in tight spaces and are usually not damaged if the motorhome is accidentally moved with the jacks down. Choose completely automatic touch panel operation in which computer selects the best leveling combination.
Class C Motorhome
These systems use combinations of straight-down and kick-down jacks. Joystick or touch panel controls can be mounted in an above-floor module easily reachable from the driver’s seat in most applications where there is insufficient dash space for in-dash or below-dash mounting.
Sprinter Class B Motorhome
These systems are specially designed to fit and safely lift and level the Sprinter chassis found on many of today’s compact, fuel-efficient mini-motorhomes.
5th Wheel
These systems replace OEM landing gear and use straight-down front jacks with lifting capacity of 7000 lbs. per jack and a 21” stroke for easy hitching and leveling. Two straight-down rear jacks offer 9000 lbs. of lifting capacity per jack and a 13” stroke.
Travel Trailer
These systems use straight-down front jacks with lifting capacity of 6000 lbs. per jack and a 16” stroke. Rear straight-down jacks offer 6000 lb. lifting capacity and a 13” stroke. They are designed for trailers with ground clearance of 28” and greater from top of frame rail to ground, and feature a hand-held, pendant-type controller for use outside the RV.
Toy Hauler
These systems use jack combinations rated to handle onboard loads in the toy hauler garage and feature a hand-held, pendant-type controller for use outside the RV.
Other Towables
An HWH Hydraulic Leveling System can be designed for virtually any towable, including horse trailers and cycle or utility trailers, drawing from HWH’s wide range of jack options and lifting capacities.
HWH Leveling Systems are available at Camping World SuperCenters nationwide. Contact your nearest Camping World SuperCenter for more information and to schedule installation or service.
