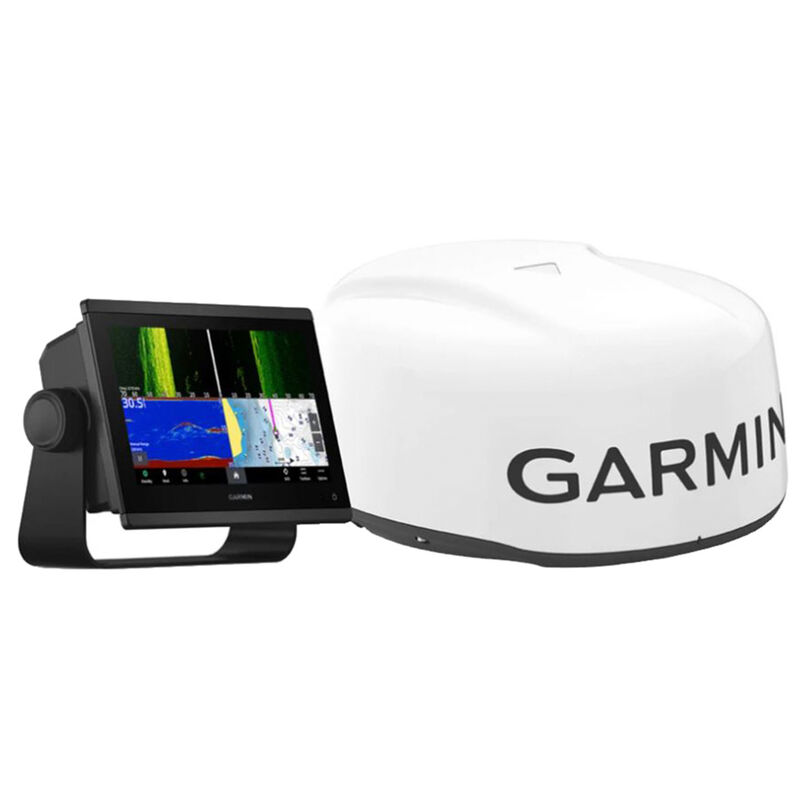

Garmin GPSMAP 943xsv w/ GMR 18 HD3 Radome

With its sleek design, powerful processing, and upgraded IPS display, the advanced Garmin GPSMAP 9" chartplotter integrates seamlessly into your Garmin marine system.

By networking select Garmin chartplotters with a force trolling motor and your compatible power-pole shallow water anchoring system, you can access advanced boat control features from your plotter, including smart anchor auto-deployment, smart anchor jog, auto stow, anchor drag detection, and auto guidance end-of-route anchoring. Spend more time fishing and less time positioning.

Pair your inreach satellite COMMUNICATOR5 to your chartplotter and type custom messages using your mfd’s on-screen keyboard. Access your contact list or enter an email, inreach address, or phone number. You can also group messages by conversation for a texting-like experience.

In the Box (chartplotter):
• GPSMAP 943xsv chartplotter
• microSD card preinstalled
• Power cable
• NMEA 2000 T-connector
• NMEA 2000 drop cable (2 meters)
• 8-pin transducer to 12-pin sounder adapter cable
• Bail mount kit with knobs
• Flush mount kit with gasket
• Protective cover
• Trim-piece snap covers
• Documentation

In the Box (radome):
• GMR 18 HD3 dome radar
• Power cable (49.21 ft)
• Network cable (49.21 ft)
• Mounting hardware kit and template
• Installation instructions

General:
• Dimension: 9.2” x 6.4” x 3” (23.3 x 16.2 x 7.6 cm)
• Weight: 3.6 lbs (1.6 KG)
• Waterproof: IPX7
• Touchscreen: Yes
• Display Type: WXGA
• Display Size: 7.8” x 4.4”; 9.0” diagonal (19.9 cm x 11.2 cm; 22.9 cm diagonal)
• Display Resolution: 1280 x 720 pixels
• Mounting Options: Bail, flush, or flat (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge are required.)
• Input: Touchscreen

Maps Memory:
• Accepts Data Cards: 2 MicroSD cards (Back of Unit)
• Waypoints: 5000
• Track Points: 50,000
• Tracks: 50 saved tracks
• Navigation Routes: 100

Sensors:
• GPS: Yes
• Glonass: Yes
• Galileo: Yes
• Has Built-In Receiver: Yes
• Receiver: 10Hz
• NMEA 2000 Compatible: Yes
• NMEA 0183 Compatible: Yes
• Supports WAAS: Yes

Built-In Maps:
• Built-in Auto Guidance+: Yes
• Garmin Navionics+ Inland Coastal: Yes
• Tide Tables: Yes

Optional Map Support:
• Garmin Navionics+: Yes
• Garmin Navionics Vision+: Yes
• Topo 100K: Yes
• Standard Mapping: Yes
• Garmin Quickdraw Contours: Yes
• Raster Chart Support: Yes

Chartplotter Features:
• Smart Mode Compatible: Yes
• AIS: Yes
• DSC: Yes
• Supports Fusion-Link Compatible Radios: Yes
• GSD Black Box Sonar Support: Yes
• GCV Black Box Sonar Support: Yes
• Activecaptain Compatible: Yes
• Grid (Garmin Remote Input Device) Compatible: Yes
• Wireless Remote Compatible: Yes
• Sailing Features: Yes
• Spoken Audio Alerts: Yes
• Onehelm Support: Yes

Electrical Features:
• Power Input: 10 to 32 Vdc
• Typical Current Draw at 12 Vdc: 1.37 A
• Maximum Current Draw at 12 Vdc: 3.20 A
• Maximum Power Usage at 10 Vdc: 40.2w

Sonar Features Specifications:
• Displays Sonar: Yes
• Power Output: 1 KW
• Traditional Sonar (Dual Frequency/Beam): Built-in (Single Channel Chirp, 50/70/83/200 Khz, L, M, H Chirp)
• Clearvü: Built-in 260/455/800/1000/1200 kHz
• Sidevü: Built-in 260/455/800/1000/1200 kHz
• Panoptix Sonar: Yes
• Livescope: Yes

Connections:
• NMEA 2000 Ports: 1
• Connections NMEA0183 Input Ports: 1
• NMEA 0183 Input (TX) Ports: 1
• Video Input Ports: 1 (BNC Composite)
• J1939 Ports: 1
• Garmin Marine Network Ports: 1
• 12-Pin Transducer Ports: 1
• USB Ports: Yes
• BNC External GPS Antenna Port: Yes
• Bluetooth Pairing: Yes
• Ant+ (Connectivity): Yes
• Garmin Wi-Fi Network (Local Connection): Yes
