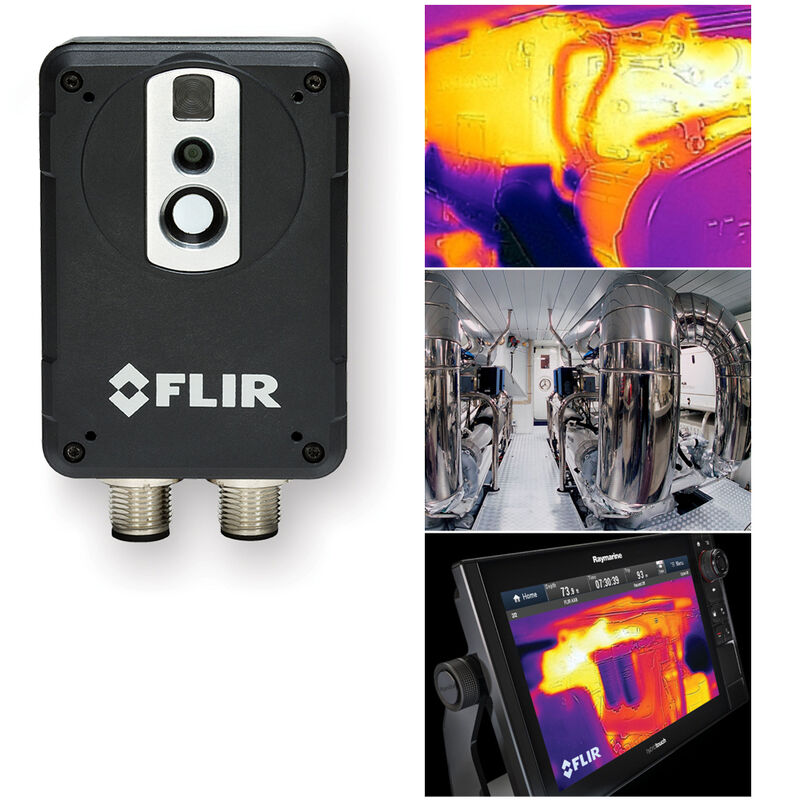

FLIR AX8 Marine Thermal Monitoring System image number 1
Online Exclusive

FLIR AX8 Marine Thermal Monitoring System

4.5 out of 5 Customer Rating
Item #: 333070
$1,304.99
FREE Shipping over $2500
FREE In-Store Pickup
Not Available
  • Ships from vendor
Additional shipping charges may apply.

Ships in 1-2 business days

In-Store Only

This item is excluded from all discounts and promotions.

Minimum order quantity of 1
Maximum order quantity of 100
Must purchase in increments of 1
Return Policy

We believe in offering the very best value, quality, and selection. Plus, we want you to enjoy your purchase! In the event you wish to send a product back to us, you may return most unused items for a refund or exchange, minus shipping, within 90 days from the date of purchase unless noted below under exceptions and exclusions. Refunds are issued to the original form of payment, unless returned in store where some exclusions may apply.

See Full Return Policy
The link to FLIR AX8 Marine Thermal Monitoring System has been copied
Features
Gain an entirely new view of your vessel's mechanical system with the FLIR AX8 thermal monitoring camera. Combining thermal and visible cameras into a small, affordable package, the AX8 integrates with Raymarine multifunction displays (MFDs) and sends audible and visual alerts when the temperature of machine parts rise above preset thresholds. Keep a watchful eye on such critical equipment such as engines, exhaust manifolds, and shaft bearings, and spot problems before they leave you stranded on the water. FLIR's exclusive MSXr imaging blends visible and thermal images for more detailed imagery that is easier to understand.

Spot Potential Problems Before They Happen
State-of-the-art thermal monitoring of engines and onboard machinery. Powered by Lepton, FLIR's most advanced micro thermal camera. Exclusive Multi-Spectral Dynamic Imaging (MSX) for easy-to-understand thermal imagery.

Onboard Thermal Alarming & Visual Analysis
Stream live thermal video of exhaust manifolds, propeller shafts, electrical panels, and other machinery. Program specific areas to generate automated spot alarms when temperatures exceed pre-set thresholds. Evaluate ongoing temperature trends. Help avoid costly repairs and unwanted breakdowns.

Raymarine Integration
View thermal, visible, and MSX video imagery on Raymarine LightHouse IIT MFDs. Continuous thermal monitoring with audible and visual alarms across the Raymarine network. Connect up to eight AX8 cameras using Ethernet
view, and record thermal video and snapshots from any Raymarine display on the network. Easy setup and alarm programming with a PC and web browser.

Specifications:
• Resolution: 80 x 60
• Field of view: 48° x 37°
• Focus: Fixed
• Built-in Digital Camera: 640 x 480
• Temperature range: 14°F - 302°F
• Compact housing 2.1"W x 1"D x 3.1"H (excluding connectors)
• Ethernet connections
• Optional ball and socket bracket mount
• Cooling plate
• Optional RAM(R) brand multi-positioning mounting bracket
  • Detailed view of your boat's mechanical system
  • Integrates with Raymarine's MFDs
  • Spot potential problems before they happen
  • Continuous thermal monitoring with built-in alarms
Specs
Unit Weight
2.60 lb
Brand
Flir
MFG Part No.
59572
