CURT 15923 Universal Weld-On Trailer Hitch, 2-1/2" Receiver (Up to 44" Frames, 9" Drop)
$220.75
Wholesale Customers: Sign In for exclusive pricing
Shipping
FREE In-Store Pickup
Not Available
- Ships from vendor
- Delivery to Change Address
- Delivery Fee Details
This item is excluded from all discounts and promotions.
Minimum order quantity of
1
Maximum order quantity of
100
Must purchase in increments of
1
Shipping Restrictions
Shipping for this item is not available to Canada, Alaska or Hawaii
Return Policy
We believe in offering the very best value, quality, and selection. Plus, we want you to enjoy your purchase! In the event you wish to send a product back to us, you may return most unused items for a refund or exchange, minus shipping, within 90 days from the date of purchase unless noted below under exceptions and exclusions. Refunds are issued to the original form of payment, unless returned in store where some exclusions may apply.
Features

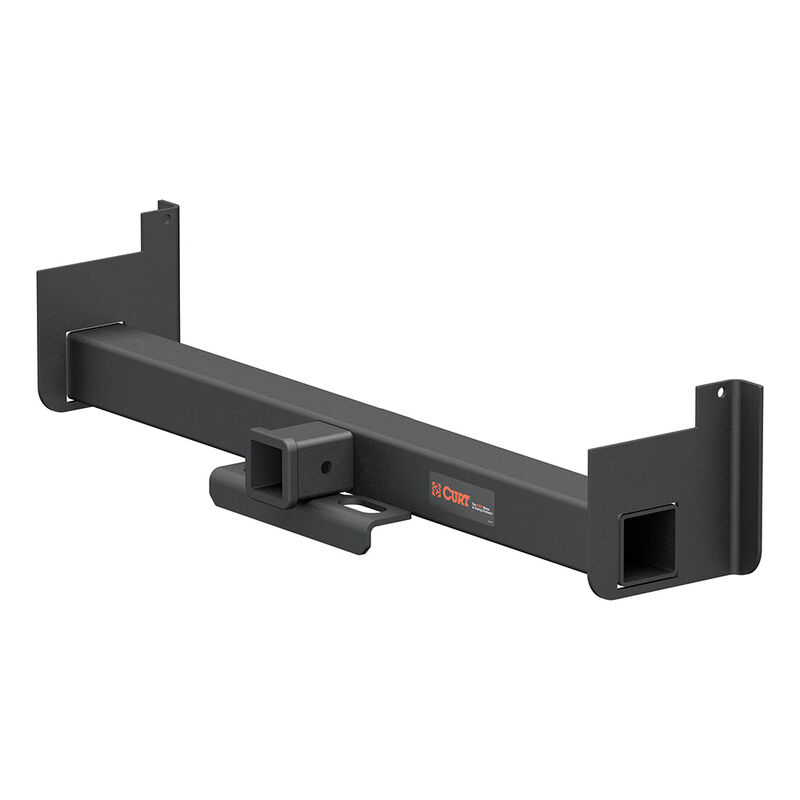

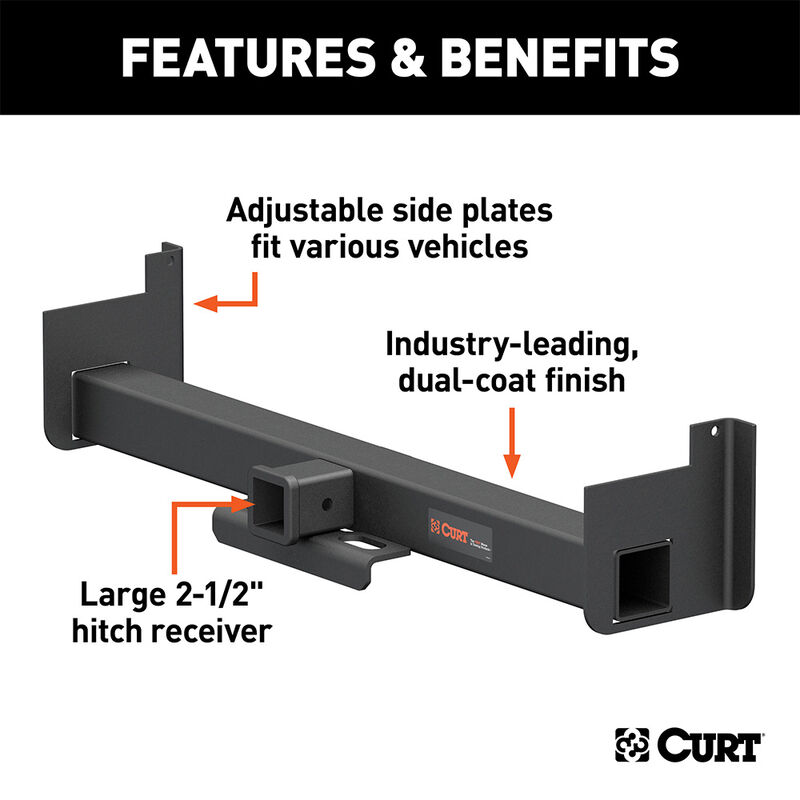

The CURT Weld-On Trailer Hitch is a unique towing option for your vehicle. As the name suggests, a weld-on hitch is designed to be welded directly onto the frame. While the installation of a weld-on hitch is far different from that of CURT custom hitches, weld-on hitches offer a high weight carrying capacity and a reliable towing solution when installed properly. This weld-on hitch comes in a three-piece design: a main body and two attachable side plates that allow the hitch to fit multiple vehicle frames.
Having a weight rating comparable to a class 5 trailer hitch, weld-on hitches work well on 1/2-ton, 3/4-ton, and 1-ton pickup trucks, including service body vehicles, and they are excellent for towing a variety of heavy-duty trailers, such as toy haulers, dump trailers, logging trailers, gravity boxes, and small yacht trailers. (NOTE: Never exceed the lowest weight capacity of any towing component.)
This particular weld-on hitch features a gross trailer weight capacity of up to 20,000 lbs. and a 2-1/2" x 2-1/2" receiver tube opening. It comes with a scratch-resistant and rust-resistant black powder coat finish and requires no hardware for installation. It is able to fit a frame up to 44" wide (to achieve 20K rating, plates need to be welded 42" wide or less).

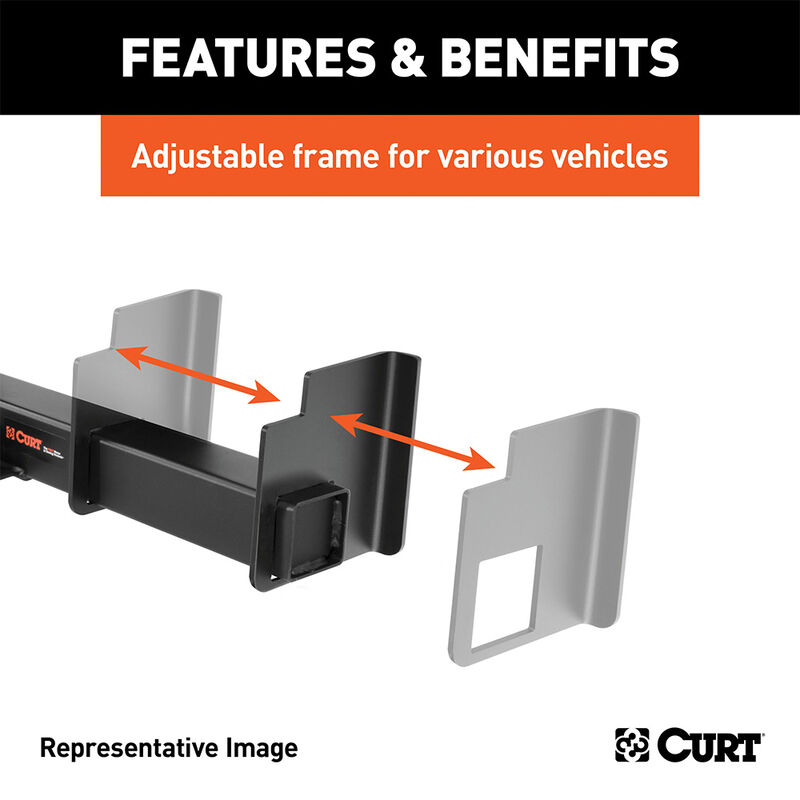

• Adjustable frame fits a variety of vehicles (side plates do not come pre-welded)
• Fits truck frames up to 44" wide
• Rated as a class 5 hitch
• Tested for safety in accordance with SAE J684
• Great for use with utility boxes
• Protected by a highly black powder coat finish

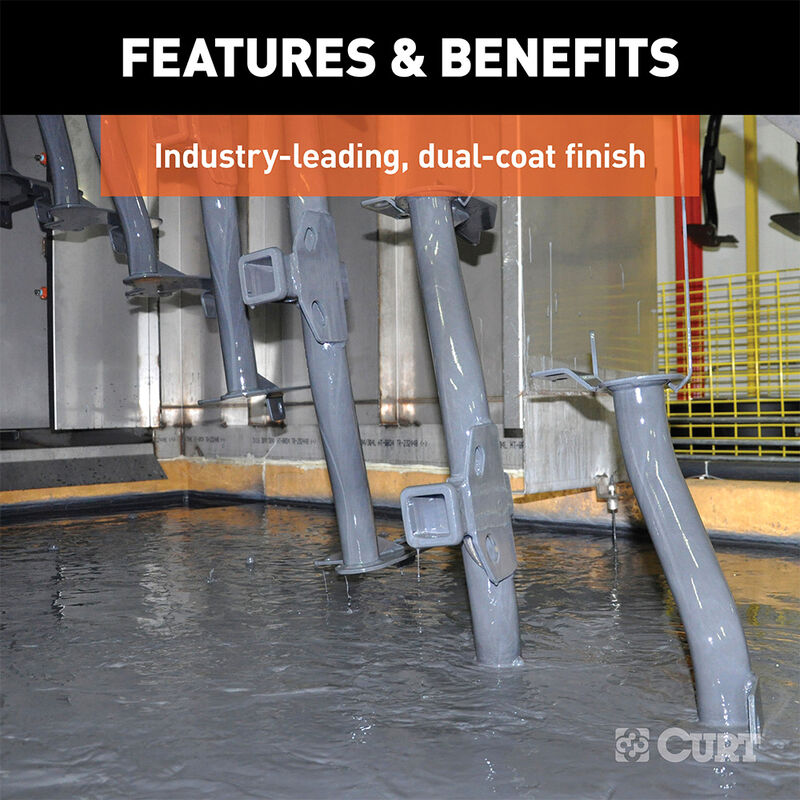

• Co-cured in a rust-resistant liquid A-coat, inside and out
• Made in USA
NOTES
• Side plates must be welded 42" apart or less to achieve 20K rating
• Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities.
• Weld-on trailer hitches are not recommended for any electric vehicle (EV) applications.
• Adjustable side plates come detached from the main body of the hitch and must be welded on.
Specifications
Type Hitch: Weld-On
Finish: Gloss Black Powder Coat

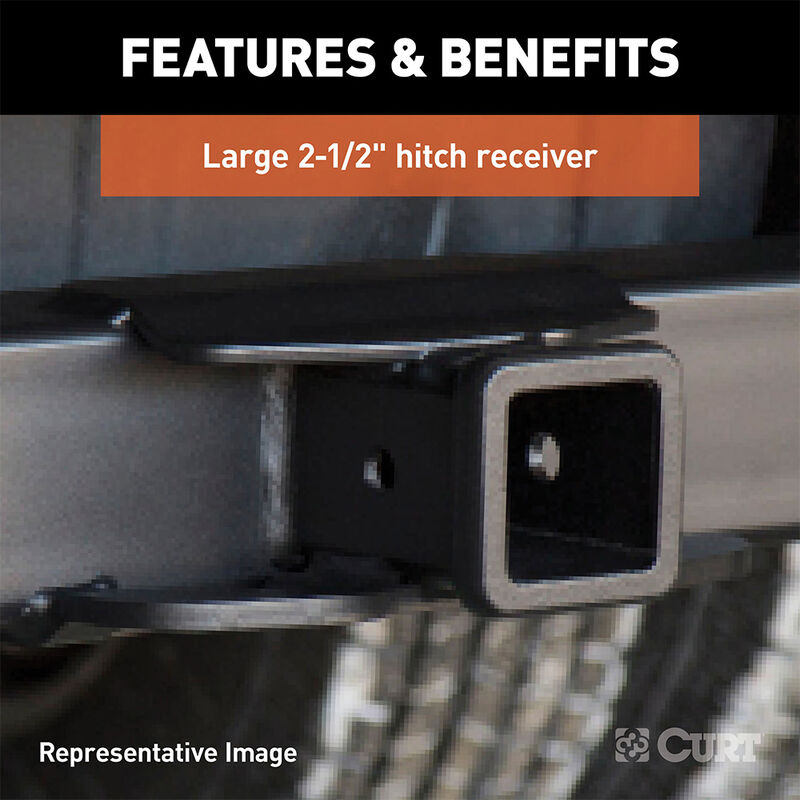

Receiver Tube: 2-1/2"
Gross Trailer Weight: 20,000 lbs.
Having a weight rating comparable to a class 5 trailer hitch, weld-on hitches work well on 1/2-ton, 3/4-ton, and 1-ton pickup trucks, including service body vehicles, and they are excellent for towing a variety of heavy-duty trailers, such as toy haulers, dump trailers, logging trailers, gravity boxes, and small yacht trailers. (NOTE: Never exceed the lowest weight capacity of any towing component.)
This particular weld-on hitch features a gross trailer weight capacity of up to 20,000 lbs. and a 2-1/2" x 2-1/2" receiver tube opening. It comes with a scratch-resistant and rust-resistant black powder coat finish and requires no hardware for installation. It is able to fit a frame up to 44" wide (to achieve 20K rating, plates need to be welded 42" wide or less).
• Adjustable frame fits a variety of vehicles (side plates do not come pre-welded)
• Fits truck frames up to 44" wide
• Rated as a class 5 hitch
• Tested for safety in accordance with SAE J684
• Great for use with utility boxes
• Protected by a highly black powder coat finish
• Co-cured in a rust-resistant liquid A-coat, inside and out
• Made in USA
NOTES
• Side plates must be welded 42" apart or less to achieve 20K rating
• Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities.
• Weld-on trailer hitches are not recommended for any electric vehicle (EV) applications.
• Adjustable side plates come detached from the main body of the hitch and must be welded on.
Specifications
Type Hitch: Weld-On
Finish: Gloss Black Powder Coat
Receiver Tube: 2-1/2"
Gross Trailer Weight: 20,000 lbs.
- Designed to be welded directly onto the frame of your vehicle
- Three-piece design with main body and two attachable side plates
- Works well on 1/2-ton, 3/4-ton, and 1-ton pickup trucks
- 20,000-lb. weight capacity and 2-1/2" receiver tube opening
- Able to fit a frame up to 44" wide
Specs
Unit Weight
59.00 lb
Brand
Curt
MFG Part No.
15923
