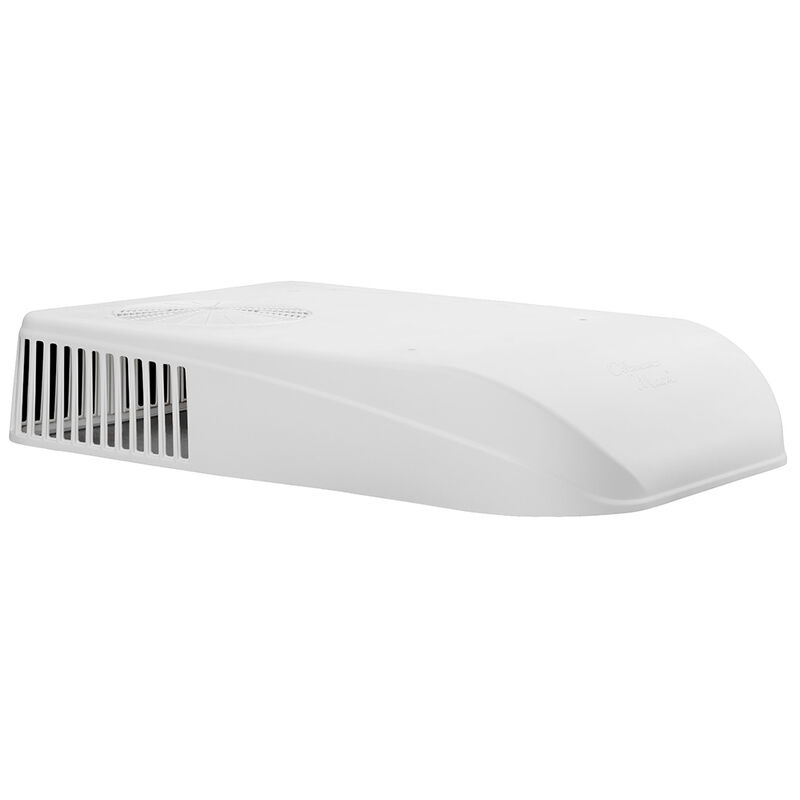

Coleman Mach 8 Plus R32 RV Air Conditioner with Heat Pump and Condensate Pump image number 1
Online Exclusive

Coleman Mach 8 Plus R32 RV Air Conditioner with Heat Pump and Condensate Pump

5 out of 5 Customer Rating
Item #: 154319
$1,619.99
Color: White
Select BTU:
FREE Shipping over $2500
FREE In-Store Pickup
Not Available
  • Ships from vendor
Additional shipping charges may apply.

Ships from Vendor

In-Store Only

This item is excluded from all discounts and promotions.

Minimum order quantity of 1
Maximum order quantity of 100
Must purchase in increments of 1
Return Policy

We believe in offering the very best value, quality, and selection. Plus, we want you to enjoy your purchase! In the event you wish to send a product back to us, you may return most unused items for a refund or exchange, minus shipping, within 90 days from the date of purchase unless noted below under exceptions and exclusions. Refunds are issued to the original form of payment, unless returned in store where some exclusions may apply.

See Full Return Policy
The link to Coleman Mach 8 Plus R32 RV Air Conditioner with Heat Pump and Condensate Pump has been copied
Features
The revolutionary Coleman Mach 8 Plus Air Conditioner with Heat Pump has the lowest aerodynamic profile of any rooftop unit in the industry at only 8.25" tall. This lower profile means less drag and improved fuel efficiency.

The ultra-low profile Mach 8 Plus has an industry exclusive fiberglass basepan that provides superior strength and durability while reducing weight. Although the profile may be small, it continues to outperform all competitive models.

Two motors deliver the same BTUs of cooling on both high and low speeds. The Mach 8 Plus has the highest air flow on high speed and is ultra-quiet on low speed for night time cooling.

• Ultra-low 8.25" profile reduces wind drag
• The lightest low-profile unit made at only 90 lbs.
• Built-in condensate pump for effective water removal
• Durable fiberglass basepan for superior strength and durability
• Quiet dual speed motors for consistent comfort
• Backward compatible with any Coleman Mach air conditioner
• Fits ducted or non-ducted systems
• Installs easily from the roof for ducted top down mounted systems
• Fits standard 14" x 14" vent opening
• Operates even at desert conditions of 125°F
• Has the largest BTU resistance heater of any RV air conditioner
• R32 refrigerant for lower environmental impact and improved energy efficiency

Mach 8 Plus 13,500 BTU Model Specs
Heat Pump: Yes
Condensate Pump: Yes
Refrigerant: R32
Volt Rating: 115VAC 60Hz 1 Phase
Full-Load Cooling Amps: 13.2A
Standard Running Watts: 1,375W
Weight: 93 lbs.
Exterior Shroud Dimensions: 8.25"H x 28.4"W x 41.1"L

Mach 8 Plus 15,000 BTU Model Specs
Heat Pump: Yes
Condensate Pump: Yes
Refrigerant: R32
Volt Rating: 115VAC 60Hz 1 Phase
Full-Load Cooling Amps: 15.2A
Standard Running Watts: 1,445W
Weight: 94 lbs.
Exterior Shroud Dimensions: 8.25"H x 28.4"W x 41.1"L

Older Models New R32 Models
Description Old Coleman Part No. Old CW Item No. New Coleman Part No. New CW Item No.
13,500 BTU Mach 8 Plus AC Arctic White 47023-076 NA 37023-076 154319
13,500 BTU Mach 8 Plus AC Polished White 47023-075 NA 37023-075 154320
15,000 BTU Mach 8 Plus AC Arctic White 47024-076 133228 37024-076 154323
15,000 BTU Mach 8 Plus AC Black 47024-079 133229 37024-079 154324
15,000 BTU Mach 8 Plus AC Polished White 47024-075 NA 37024-075 154325
  • Lowest aerodynamic profile of any rooftop unit at only 8.25" tall
  • Heat pump for added comfort in cool temperatures
  • Built-in condensate pump for effective water removal
  • Durable fiberglass basepan for superior strength
  • R32 refrigerant with lower environmental impact
Specs
Unit Weight
111.00 lb
Brand
Coleman Mach
MFG Part No.
37023-076
